TA-K88176-PA

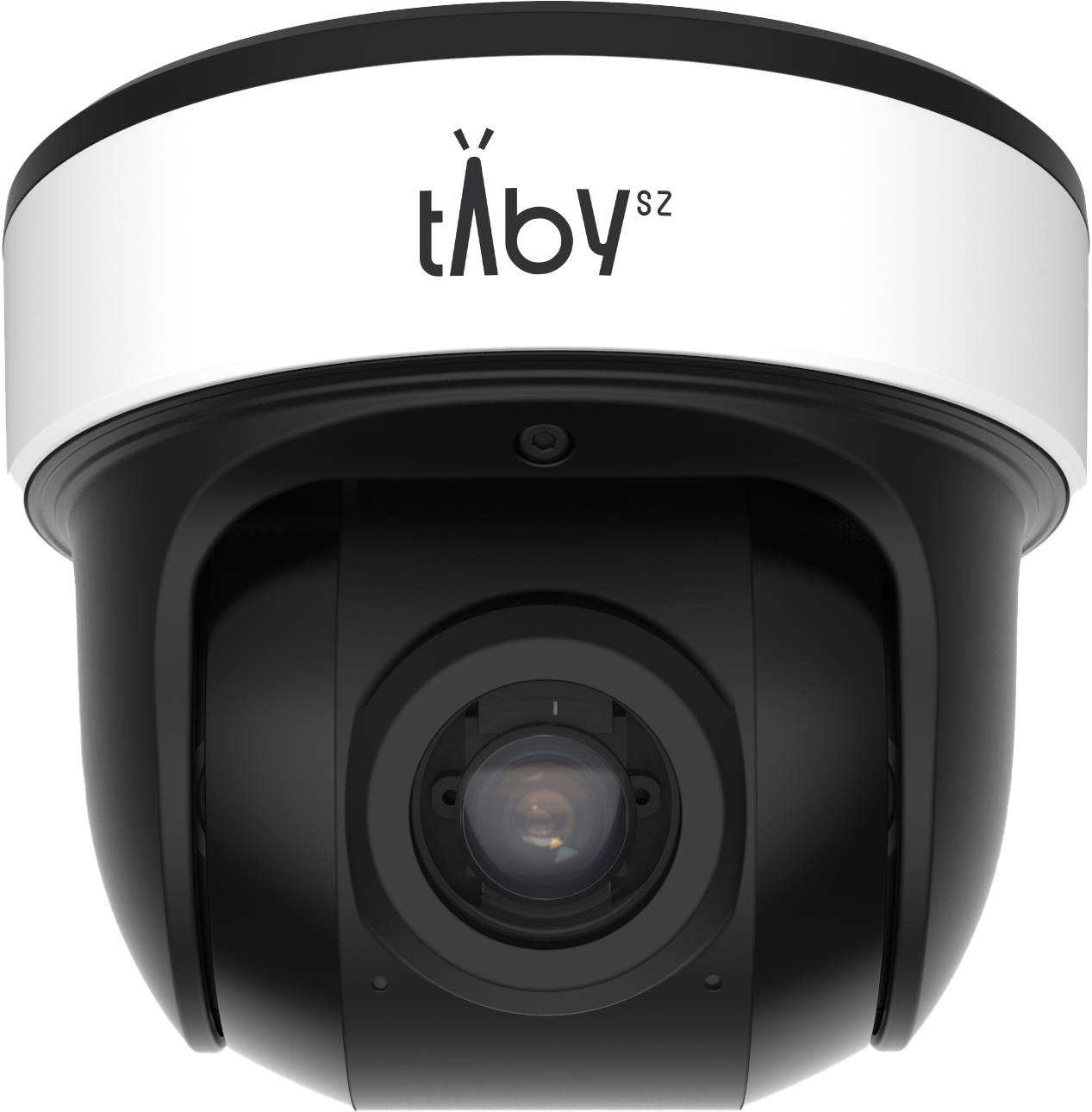

5MP AI 180° Panoramic Mini Dome IP Camera

  • AI
  • 180° Panoramic View
  • 4K Ultra High Definition
  • 120dB Super WDR
  • 0.01Lux Low light
  • Panoramic IR Technology
  • 180° IR Coverage
  • Heat Map
  • IP67 & IK10
  • Built-in Microphone
  • Integrated Junction Box
CAMERA
Image Sensor
1/2.8″ Progressive Scan CMOS Sensor
Minimum Illumination
Colour: 0.01Lux@F1.2; Colour: 0.012Lux@F2.0; B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
1.68mm @F2
Mount
M12
Field of View
H180°/V86°
Shutter Time
1/100000s~1s
IR Distance
Up to 15m
Day/Night Mode
Day/Night/Auto/Customize/ Schedule
S/N Ratio
>55dB
VIDEO
Maximum Image Resolution
3840x2160
Primary Stream
60Hz: 30fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720); 50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192); 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192); 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
Video Compression
H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking
Up to 24 areas
ROI
Up to 8 areas
Image Setting
Brightness/Contrast/Saturation/Sharpness
INTERFACE
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
NETWORK
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AUDIO
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
INTELLIGENT ANALYTICS
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report
Count the number of people entering or exiting, up to 4 detection areas for regional people counting
SYSTEM
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice & Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
GENERAL
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE (802.3af) / DC 12V±10%
Power Consumption
6W MAX; 9W MAX (With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated Metal Housing
Weight
853g
Dimensions
Φ127mmX107mm
Warranty
3/5 Years
TA-K55376-PA-K88176-PA-datasheet
