WDB08PB

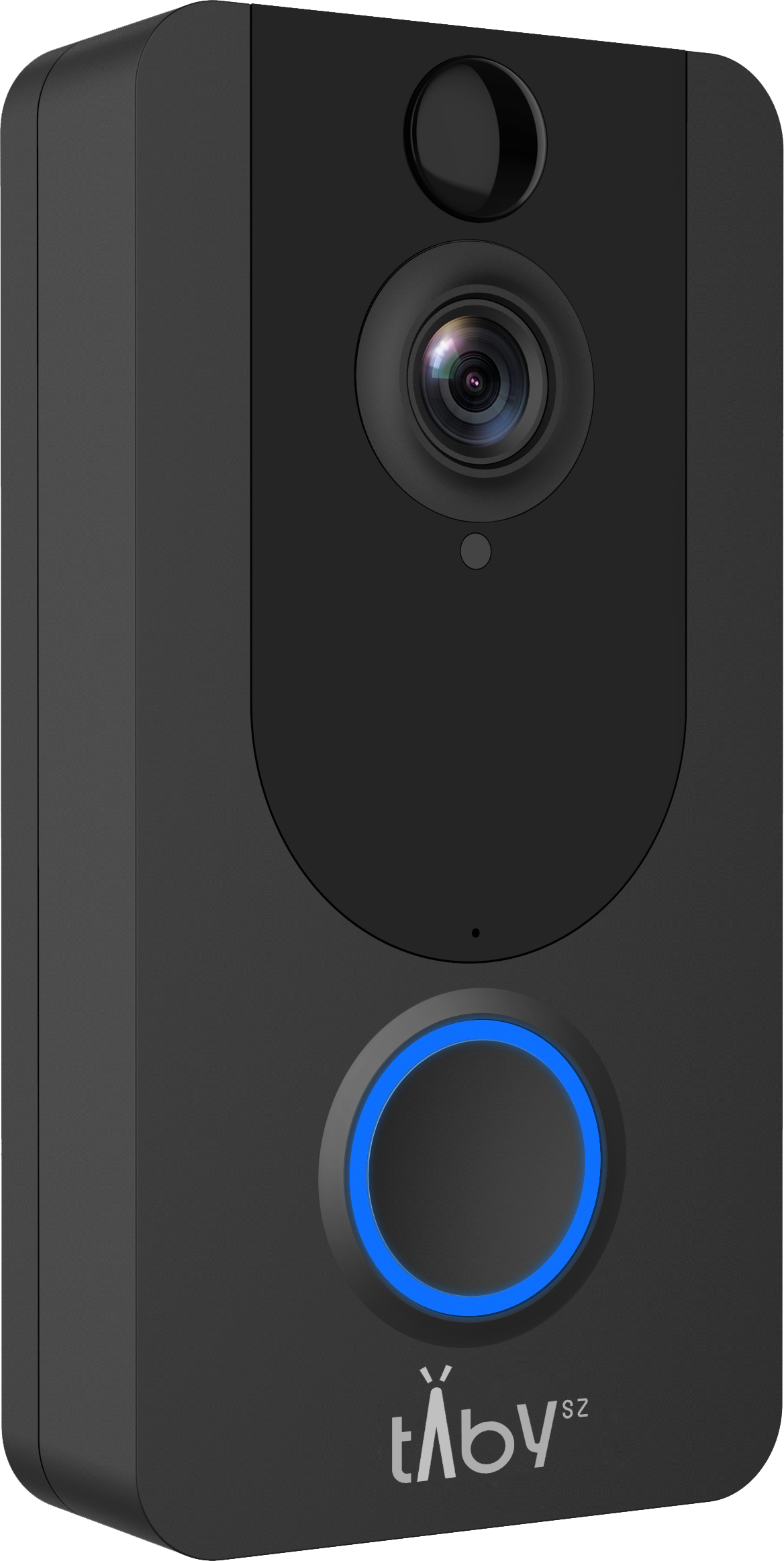

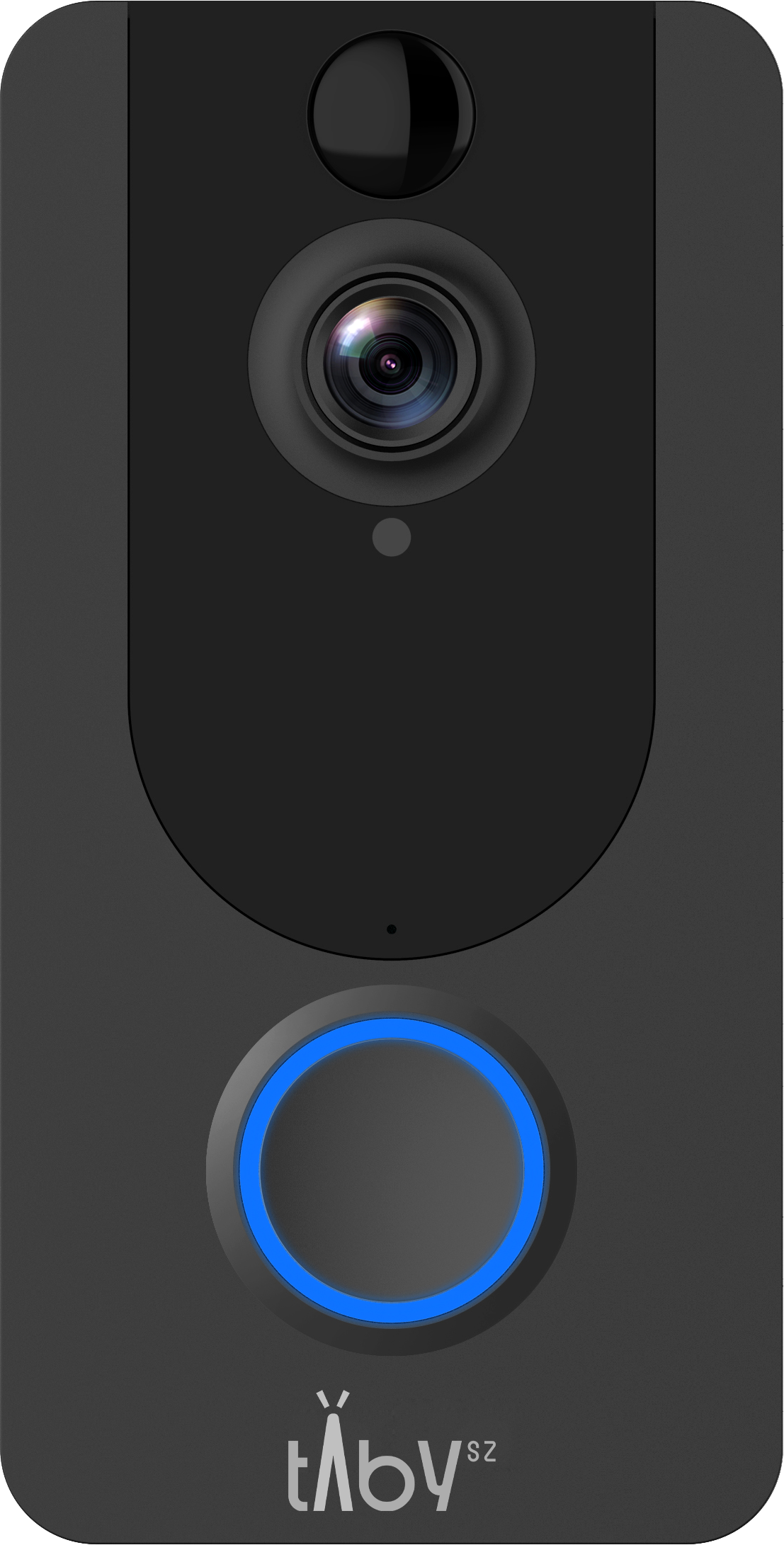

Video Doorbell
Key Features:
  • 1080p Video
  • Long Battery Life
  • 2-Way Audio
  • PIR Motion Detection
  • 2.4G Wi-Fi Compatible
  • Free 7-Day Cloud Recording
  • Night Vision
  • Weather Resistant
  • Wide-Angle Lens
  • Notification to Smart Phone
Chipset(CPU)
GM8135S, built-in ARM926@Max. 440MHz high speed video co-processor
Sensor
1080p GC2033 CMOS
Lens
140° wide angle
Sensor Capability
Support automatic white balance, automatic gain control, automatic backlight compensation
Signal to Noise ratio
≥39dB
Minimum Illumination
0.8Lux/F1.4 (colour mode), 0.3Lux/F1.4 (black & white mode)
Night vision
Double filter automatic switching, Six 850nmΦ28Mil high power infrared lights, Night vision 10 meters
Video Format
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video Size/Frame Rate
1080P 15fps/30fps
Video mode
1. Record when there is motion detection 2. Record when someone ring the doorbell 3. Record manually from APP
Battery Type/Capacity
18650 battery cell, 2600mAH
Battery Discharge Time
2 batteries last for 2-4 months
Network Protocol
TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc.
Wi-Fi Connection
support (802.11 b/g/n)
Storage
7 days free cloud recording
Working Voltage
DC 5V/1A
Working Current
365mA
Charging Voltage
DC 5V/1A
Storage Temperature(℃)
0℃～50℃
Operating Temperature(℃)
-10℃～50℃
Operating Humidity
<95%
Wake-up Methods
1. Wake-up by ringing the doorbell 2. Wake-up by PIR motion detection 3. Wake-up by APP live preview
Application/Use
When there is visitors, the doorbell can record short videos, do two-way talk, and the house owner can see online what is happening outside the house
Features
Wireless installation; ultra-low power consumption; long distance active wake-up; support 6 users view online at the same time
